V2 C128 CGA to RGB adapter


So it turns out the original version of my adapter had a logic error that missed out a colour. While I am kicking myself for that I got on with making a new design. This time, to avoid logic errors that require a new PCB I used programmable logic.

Using a single GAL I put all the logic to turn the RGBI+HV into RRGGBB+s. Thats 4bit into 6bit and h/v sync into proper composite sync. The 6bit output (2bits per colour) feeds a resistor DAC to provide the most perfect colour output I think it’s possible to get from the 128’s CGA output. It was also possible to make changes to the logic in the chip if I made a mistake. Turns out I got it right first time this time but made up for that by getting other things wrong on the PCB.

As well as the VDC output I put a pin header on for connecting to the VIC Video out DIN. This allows feeding 5v from the 128 to the adapter board as well as hooking up the VICs S-Video output and audio in an easier way than the DIN plug. The S-Video from the VIC goes to a real S-Video socket and the audio goes to a 3.5mm audio jack.

The final board is pretty amazing and seems to work really well. It makes hooking up to monitors easier by having a VGA style 15pin connector so my BenQ monitor which handles 15khz natively works fine by simply plugging directly in to the 128 (via this board). the Gonbes style arcade RGB to VGA adapters also work and can be connected easily with a normal VGA cable between the 128 and the Gonbes.

Here is how it looks hooked up to my BenQ with no scandoubler or linedoubler, just this adapter.

There is a pad near the S-Video jack to insert a resistor on the chroma line but I have not had need of that yet and normally just short this pad. The power LED helps remember to plug the 5v line in 🙂

Apart from getting the audio jack connected backwards I am pretty happy with the end result. I have since ordered new boards with the audio pinout fixed.

The 6pin header is as follows,
1 Ground
2 5v+
3 Audio
4 Composite video (not connected)
5 Luma (from S-Vid)
6 Chroma (from S-Vid)

Posted on

Mini Vectrex 3D Printed

3D Printed Mini Vectrex
3D Printed Mini Vectrex

There are many “Mini” computers and consoles that have already been 3D modelled. However I didn’t find a Vectrex anywhere. I had already been doing work on a Vectrex Emulator and decided to model my own and make it work.

The heart of the system is the VoCore I have been playing with on and off for a while now. It’s not super powerful and pushing the pixels over SPI is quite slow, but for something like the Vectrex emulator it does it ok. The screen is a cheap 2.2″ SPI LCD off ebay, originally a phone screen but now very commonly used by the Arduino crowd. It has a touch screen but that is not connected in this case. This is my first VoCore board and I didn’t wire up as many GPIO or even the hardware SPI so the few (4) working GPIO I have broken out all go to the LCD to draw the image.

I used Google SKetchup to make the Vectrex case. I exported it and loaded the mesh into Meshlab to clean up and scale.
Finally it was printed on my M3D (Micro 3D) printer in PLA. I took many prints to get a good one, with lifting/curling problems and many other failures as well as adjustments in size. When I finally had the thing done I realised 2 things.
1) I hadn’t included mounting posts for the LCD.
2) I hadn’t included any way to join the front and back of the case.

Oh well, what else is Hotmelt glue for eh?

The Emulator itself is a port of VECX that I modified to write directly to my LCD instead of using SDL or other graphics method. Power comes from a small LiPo inside and a 3.3v LDO to feed the VoCore and LCD. This makes it totally self contained and portable, along with WiFi it makes it a nice little unit.

The STL files for the case can be found here.

Final outcome? Watch a little demo here,

And a better quality video here,

Posted on

More VoCore, Sketchpad and Vectrex

So. I added a heatsink to the chip to control the raging fires, it helps but not a lot.
VoCore Heatsink

I also worked out the touch controller and hooked it up to the GPIO pins leaving the LCD on the hardware SPI (all working now). This let me write a little sketch app,
VoCore Sketch
The extra touch space at the top works as four soft buttons. It’s not very advanced, just proof of concept for the touch controller.

Lastly. More emulation. I ported VECX to the VoCore. Now it works better with software GPIO due to the time spent on each system call for the hardware SPI and the fact it does lots of lines. Each line calls single pixel drawing which is at least 9 bytes per pixel, all called individually so I can toggle the command/data register 🙁
With software SPI it runs pretty much full speed! This is only a problem if I want to swap between my other stuff and the vectrex app as I have to re-wire the screen 🙁

Posted on

Skylanders, in detail

Why are Skylanders so hard to hack? Well. Without revealing anything that isn’t already actually public, here are some details on what’s going on.

Skylanders are MiFare classic compatible.
(What I am about to say here is public knowledge and in no way secret or hacking related).
Mifare Classic has 16 sectors (each with 4 blocks of 16 bytes) on the chip. Each Sector has an access key (2 actually but nobody ever uses the second).
You can NOT read a block without it’s key (each Sector of 4 blocks has one key so 16 keys per chip). It is impossible to get a single byte of data off a Skylander without the key for the block you are trying to read.
The only data you can get is the UID of the figure (it’s RFID Address/SN) and a couple other bytes used to pick which card you are trying to read. All this is part of the NXP MiFare standard and can be researched with not a mention of Skylanders. It’s a well understood technology.
The portal has some math deep inside it that it uses to calculate the figures keys, once it has done this it can read any data block on the figure. This means the keys are NOT sent to the portal via USB or even stored in the firmware on the portal. You can’t extract them that way.

Data stored on the chip (figure) is sent back to the console from the portal after reading but it is STILL encrypted. Activision chose to encrypt the data on the figure AS WELL knowing that the portal could be used to retrieve that data by almost anybody.

This is NOT part of the MiFare standard, it’s an added layer of encryption put on the data that is stored itself.

The first block is not encrypted by Activision, this contains the figure ID and a few other bits that never change. All editable data is encrypted. This is the bit that the “first” hacker worked out making everything else possible. However, even reading the data doesn’t let you change it as there are checksums that prevent writing without knowing the formula to put the correct checksum byte back on the figure. Without that the new data is “corrupt” when viewed in game.

So, with only a Portal and basic skills with USB you can read all the data from a figure but it’s useless except the basic info on what figure it is (which is write protected).

I have yet to see the Amiibo or Disney Infinity figures to know if they are the same but would imagine if they use MiFare Classic that it’s not going to be a huge leap to assume something similar.

Posted on

VoCore Alpha gets LCD with Doom and NES Emulation

NES Emu on VoCore

So I got the VoCore alpha a while back. It didn’t work. Turns out a design flaw meant a modification was required to get it running. I got two, and they were both b0rked.

The 0402 components required for the fix are what I class as “dust” and the two modules were quickly shelved for “future use”. Or not….

Roll forward some months and I manage to gain access to a stereo microscope and some tiny tools. I fix both VoCore and solder up some breakout boards for them.

What to do? Well, lots.

Firstly USB was configured with sound and HID as well as storage. I got a webcam and did streaming video, a USB sound card and played internet radio and fiddled with all the normal stuff openWRT gets to do.

Then I hooked up a small Nokia display (Thanks Sparkfun!) using SPI (software only, hardware SPI pins are not broken out on the VoCore alpha board). A quick port of an old NES Emulator later and I have this,

NES Emulator on YouTube (This is sped up as the emulator was slow when the video was filmed. I have since increased the speed to be almost playable)

After this success I moved onto the old favourite, Doom.

Doom on VoCoreDoom on VoCore (This video is realtime, but not playable as the fps is far too slow).

So current state is that the VoCore is a great little board that is quite capable. I have started to get hardware SPI working by hooking onto the flash SPI pins but am still having speed issues. The goal is to bring up the speed and then work on a framebuffer driver for the VoCore.

Any week now all the original Kickstarter backers will start to receive their VoCore boards and I think then the fun really starts 🙂

Posted on

mtGox victim

So, I had about £600/$1000 in mtgox when it went down.

I had been trying to withdraw my money for months but they were just delaying and making excuses on approving my account to prevent just that. In the end I lost everything.

Anybody that feels sorry for me can donate here,


Not much you can do except move on and curse the people that said to use MtGox because it was “safe”.

Posted on

Fun with Skylanders

Ok, so I finally caved in and bought some Skylanders stuff cheap on ebay. I got a second hand Portal and game for the 3DS (for my son, honest). Now, it didn’t come with figures but the save games had 2 figures cached so we can still play.
Looking for figures I found the start set figures were pretty much nowhere to be found, so to get them I bought a PC starter pack, with Portal and Game.
Now I don’t want to play it on the PC and will probably resell the PC game, but out of interest (before the PC one arrived) I bought just the Wii game with no portal and no figures, just a disk.
The 3DS portal with USB cable WORKS with the Wii version! I have yet to try the PC portal on the Wii but as that has USB it should work too, plus it holds more figures.

So, it looks like for compatibility the 3DS portal is best, working with the PC, the Wii and the 3DS (maybe xbox/ps3 too?). However it only holds one figure because it’s smaller.

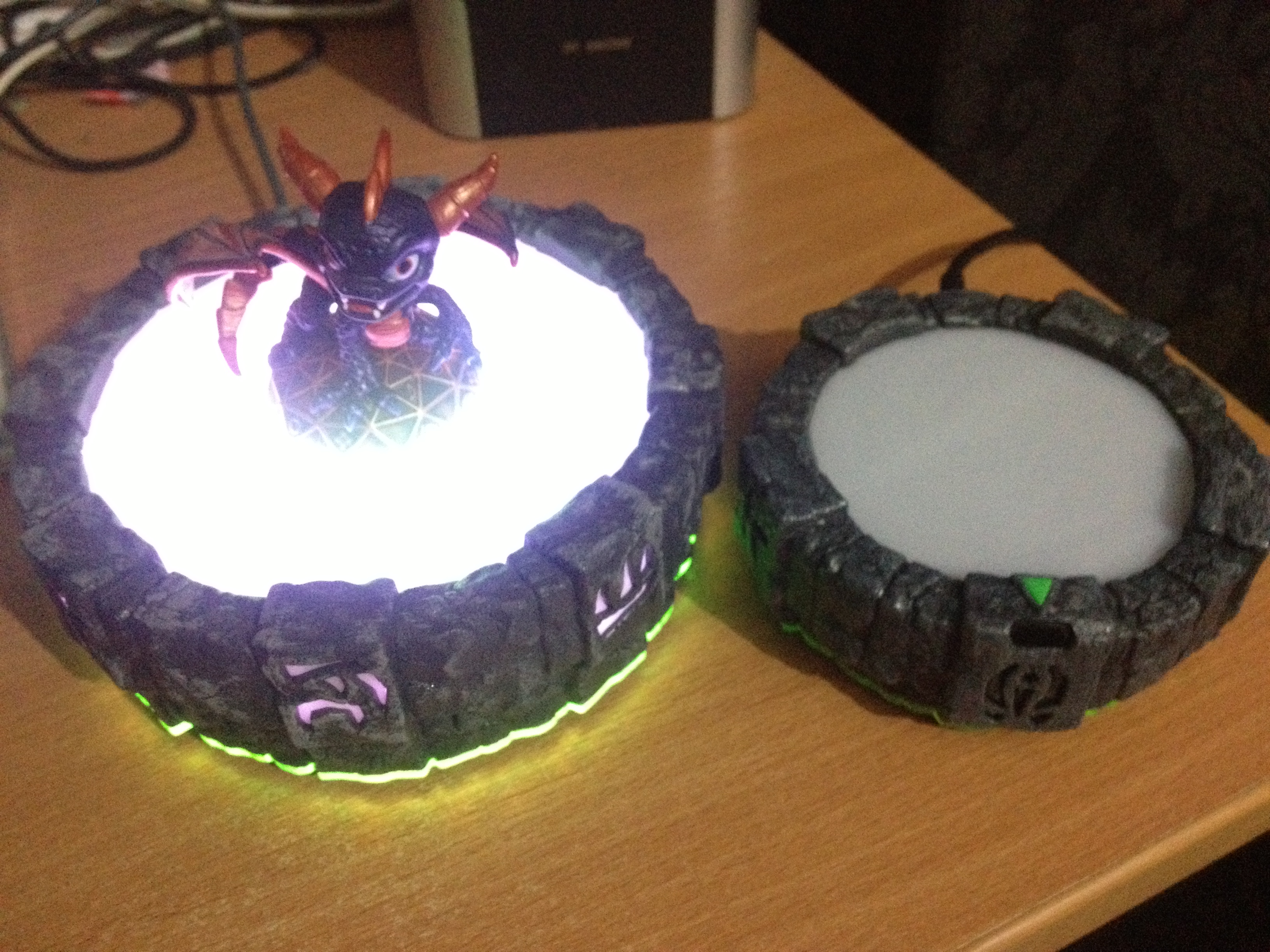

Turns out the system used is a standard ISO RFID so lots of RFID cards trigger the portal, obviously they don’t read as figures but its funny to see your oyster card trigger the Portal of power as if you put a figure there.

So, My figures arrive and I play. For no reason one of them corrupts.
I have NO idea how to fix this in the Wii version I am playing, but luckily I have the 3DS version and DO know how to fix it in that.
I place the figure in the portal and the 3DS offers to reset it, I do so and it “works”.
Sure enough, the Wii recognises it too.
Worried by this I decide to backup all the figures right away, The first two backup no problem but the figure I “fixed” will not backup and gives errors.

Is it possible the Figure is damaged? The Wii/3DS still read it but the PC won’t back it up. Very strange.

Posted on


I built a quad-copter (That’s for another post!) and bought a cheap chinese 6 channel TX.

It sucks (The TX that is).

I built my own TX from scratch using a 2.4ghz plugin RF module designed for converting 35mghz transmitters into 2.4ghz versions.

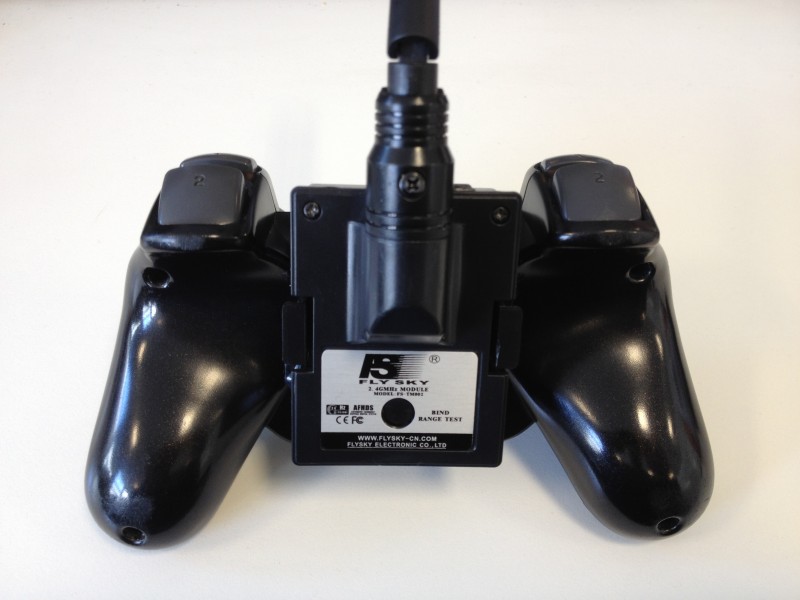

The base of the TX is a PS2 pad, the vibration motors were removed and the control chip desoldered. An AVR was installed in one of the “arms” of the pad where the motor was removed from.

The two sticks were connected directly to ADC0-ADC3 on the AVR.

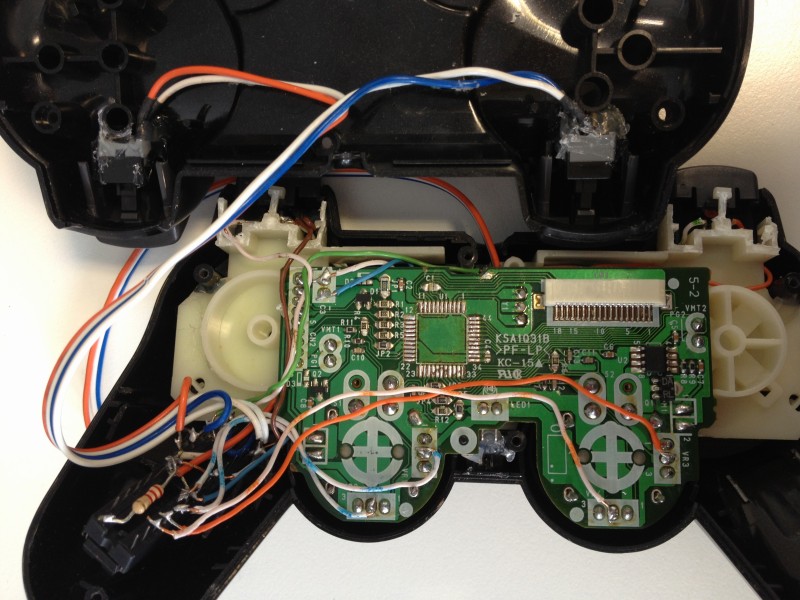

It turns out the pad had “analogue” buttons and these were not good enough to trigger the digital inputs on the AVR. The solution was to fit 4 small micro-buttons behind the shoulder triggers to provide a good action. The top buttons were ignored.
These 4 buttons trigger the “aux” channels, sending a value around 1500 when off and 2000 when pressed. This allows me to trigger options on my quad.

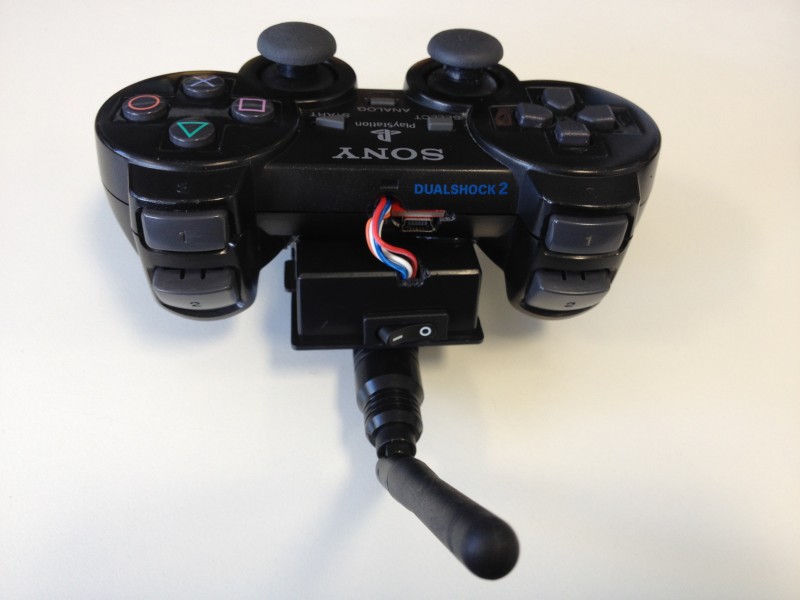

To power the whole thing a small 500mah 3.7 lipo was fitted inside the radio TX module and a 3v to 5v step up adaptor fitted inside the pad. A lipo charger with mini-USB connector was fitted near the old cable outlet.
The LiPo charger outputs 100ma, so 5 hours to fully charge the battery, while the step up converter is capable of 500ma max, so 1 hours maximum run time.
I have yet to do a test to see how long it works in actual usage, but I expect more like 2 hours+ in normal use.

The code to generate the ppm signal is from an open source project called Funkenschlag by a friend from IRC.
